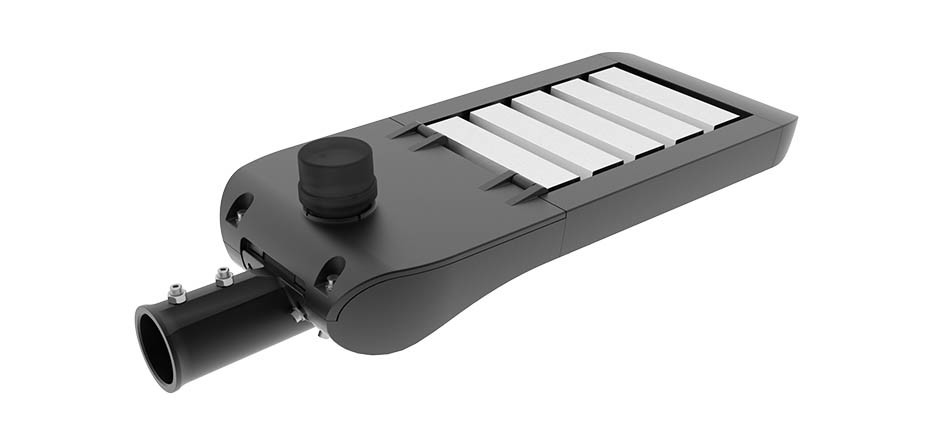

01.HOUSING
Die cast aluminum housing
Modular design allows for easy installation, replacement and maintenance. This
design also creates a chimney effect which enables passive heat dissipation.
IK10 rated.
Meets 3G vibration per ANSI C136.31-2010.
02.FINISH
Corrosion resistant polyester powder painted 100μm thickness.
Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
Standard colors: Grey, Black, Bronze and White.
Customized colors are available.

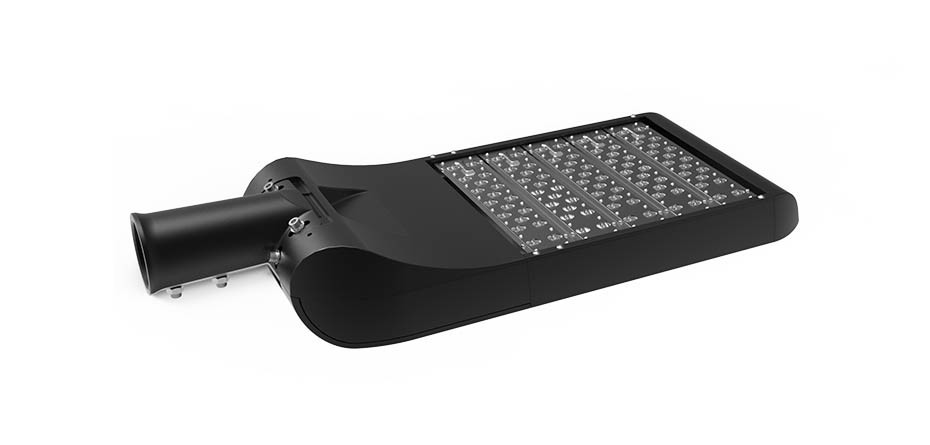

03.LED ＆ OPTICAL ASSEMBLY
Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the
LEDs from voltage transients induced by lightning and other transient voltage events.
High-uniformity LED optics are constructed of durable optical polycarbonate that is
impact and UV resistant.
The metal plate provides double protection for the LED light engine and prolongs LED optics life.
Over 20 optical lenses are available for virtually any application.
Each LED module are 100% tested prior to assembly which is IP67 rated.
04.MOUNTING
Side-entry or post-top mounting.
Slipfitter with +/- 20 degree of adjustment for leveling.
Standard mounting diameter is 2 3/8"(60mm), custom adaptors are available for smaller diameters.
Brackets are available for different installations.
05.Electrical/ Key Components/ Controls
120-277VAC and 347-480VAC and 12-24VDC available.
Standard maximum surge protection to 20kV/10kA per ANSI/IEEE C62.41.2-2002.
First class driver and connectors, e.g. MOLEX, WAGO.
Multiple smart lighting control options are available, e.g. photocell, motion sensor, DALI, 1-10V.
3-pin/ 5-pin/ 7-pin photocell are available for light level adjustments.
